1
|

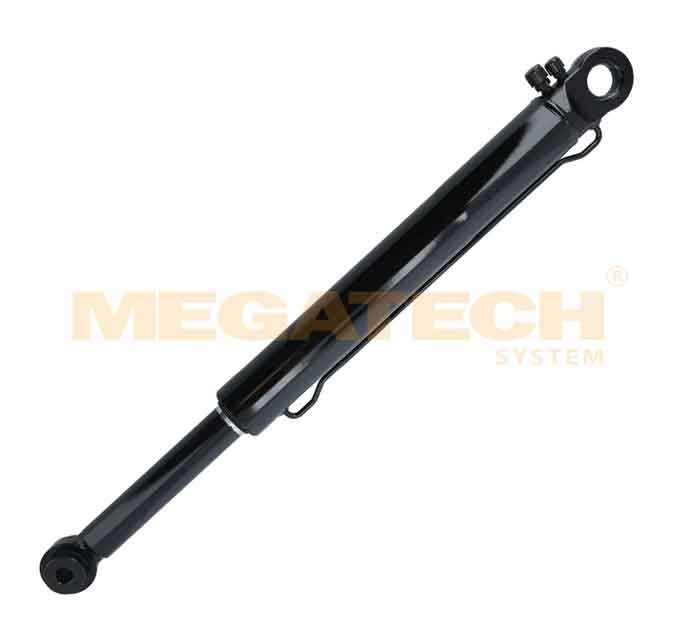

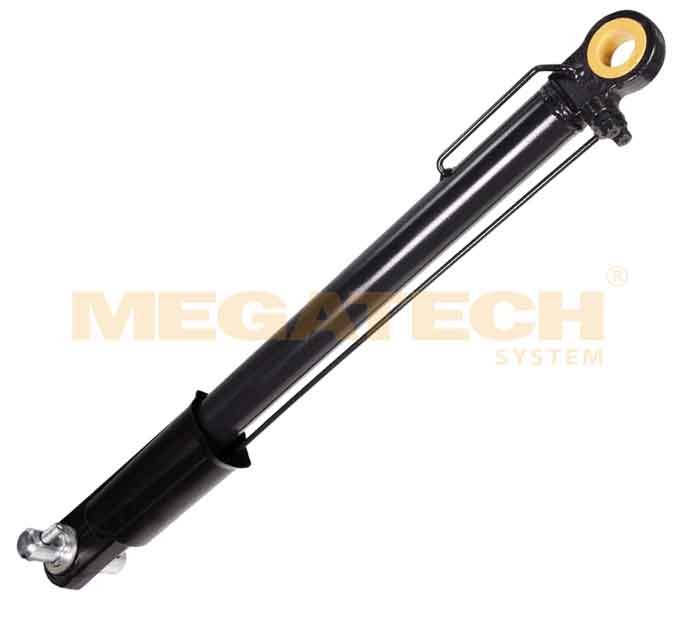

50.0181.076CYLINDER (TILT CYLINDER) |
Length 560 mm
Length 235 mm Diameter of the attachment points 20 mm/26mm |
2
|

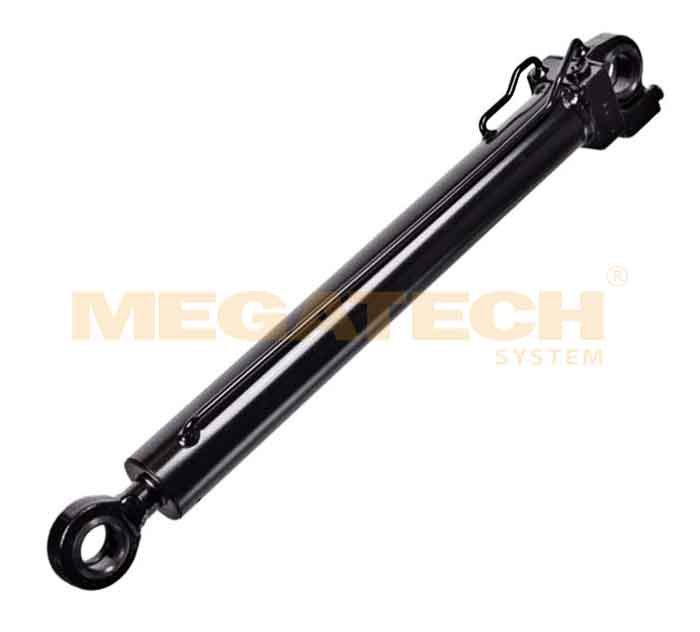

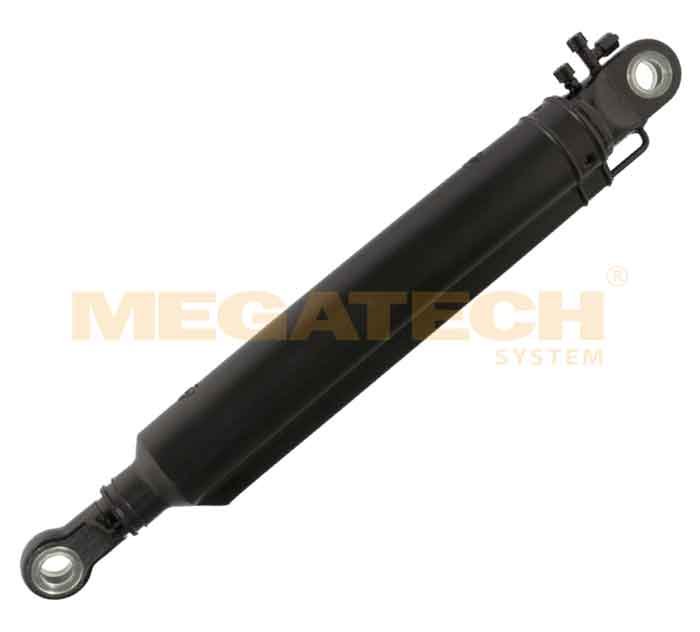

50.0281.500CYLINDER (TILT CYLINDER) |
D=Ø50 Ax=600
|
3
|

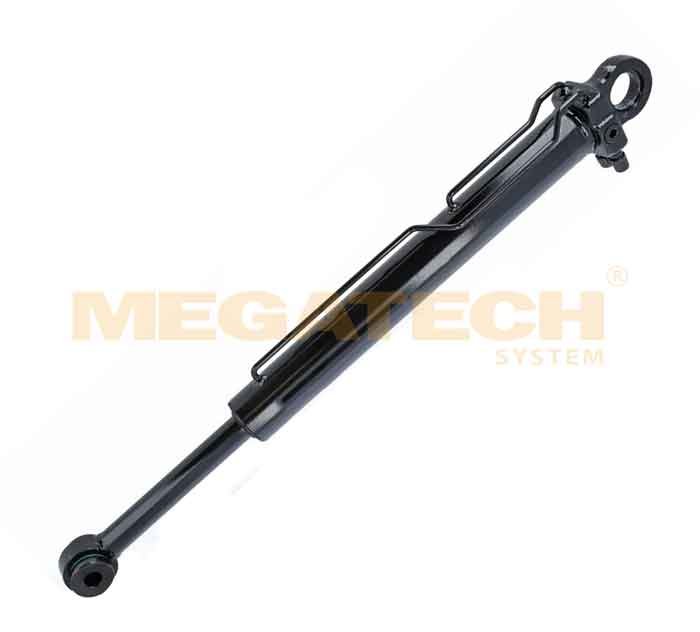

50.0381.029CYLINDER (TILT CYLINDER) |
D=Ø50 Ax=889
|
4
|

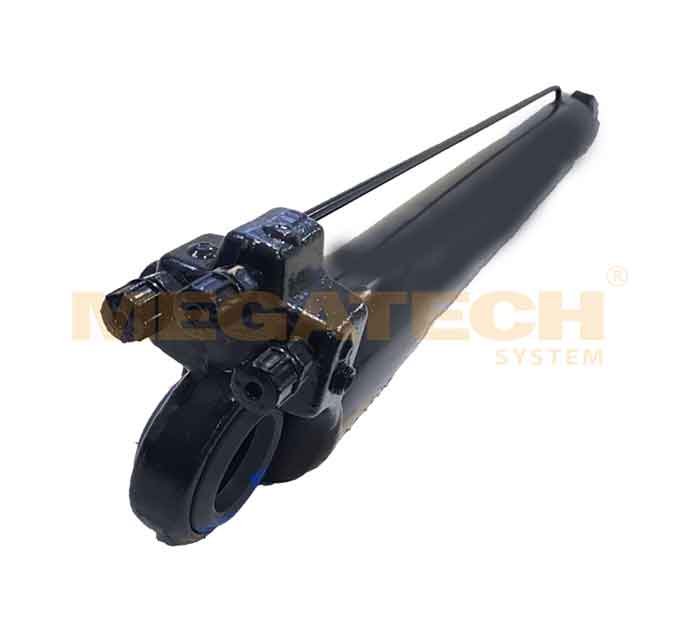

50.0480.068CYLINDER (TILT CYLINDER) |
Length1 670 mm
length2 468 mm No. of Connections: 2 |
5
|

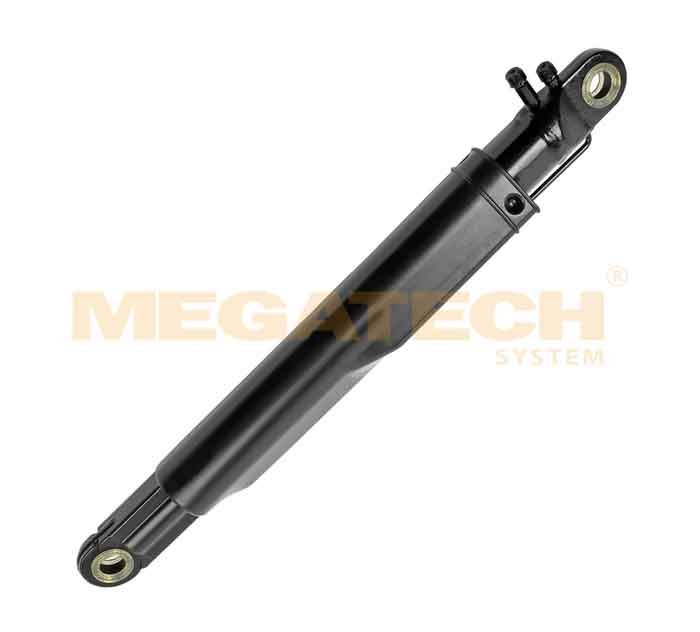

50.0585.738CYLINDER (TILT CYLINDER) |
Length 1 [mm]L1 - 650 Length 2 [mm]L2 - 958 Diameter [mm]D - 59 Stroke [mm] - 332 Bore Ø 1 [mm]b1 - 30 Bore Ø 2 [mm]b2 - 16
|
6
|

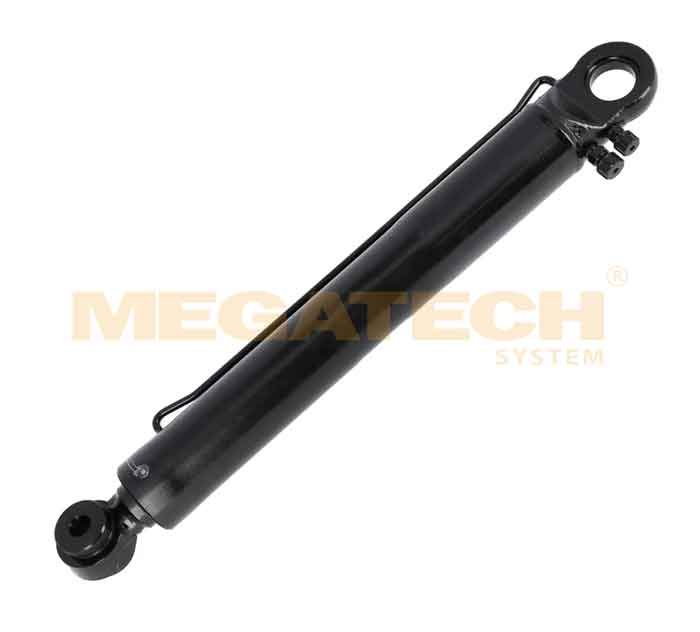

50.0608.724CYLINDER (TILT CYLINDER) |
L:736.50mm548mm, ØM50x30mm,
M25.5x22 ,Stroke : 330mm |
7
|

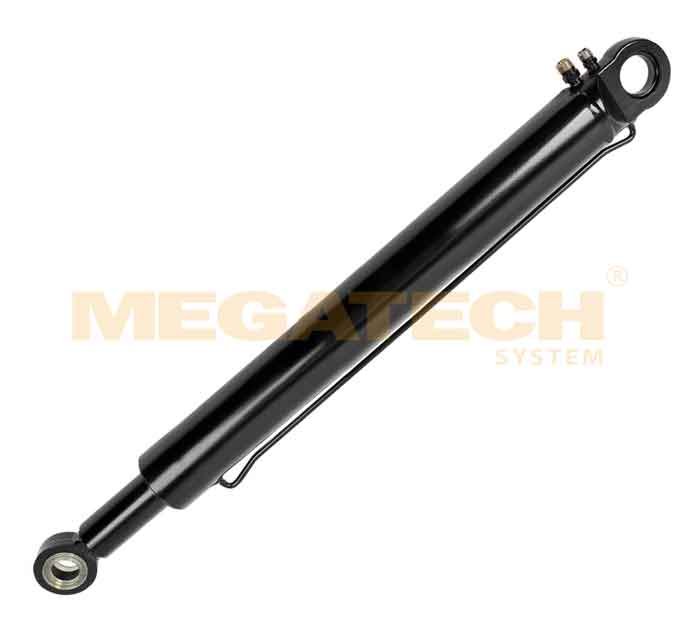

50.0785.386CYLINDER (TILT CYLINDER) |
Length: 560 mm
length: 400 mm No. of Connections: 2 |
8
|

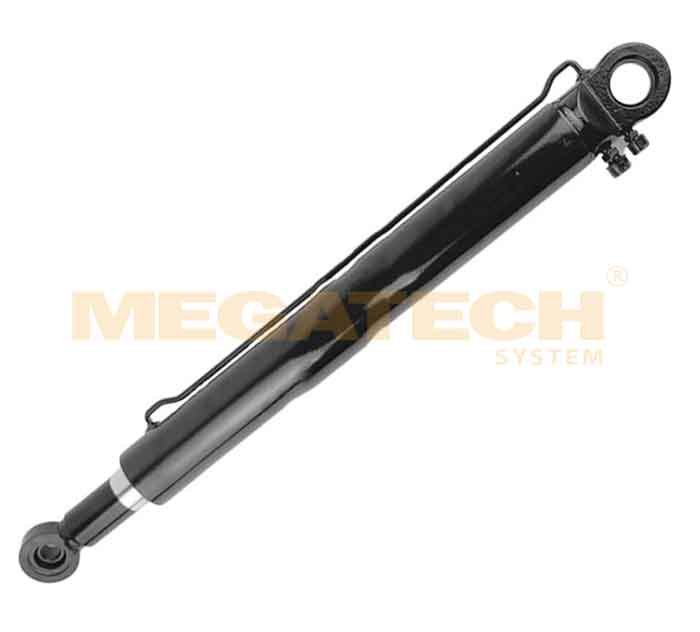

50.0885.739CYLINDER (TILT CYLINDER) |
Length [mm]:502
Stroke [mm]:319 Diameter 1 [mm]:38 |
9
|
50.0980.130CYLINDER (TILT CYLINDER) |
Length: 511 mm
length: 361 mm No. of Connections: 2 |
10
|
50.1045.005CYLINDER (TILT CYLINDER) |
Length: 678 mm
Length: 338 mm No. of Connections: 2 |
11
|
50.1145.905CYLINDER (TILT CYLINDER) |
Length [mm]: 675
Pipe Diameter [mm]: 53 Pressure [bar]: 250 |
12
|
50.1280.305CYLINDER (TILT CYLINDER) |
Length: 511 mm
length: 390 mm No. of Connections: 3 |
13
|
50.1358.407CYLINDER (TILT CYLINDER) |
Length: 390 mm
Length: 815 mm length: 425 mm |
14
|
50.1458.207CYLINDER (TILT CYLINDER) |
Length: 560 mm
Length: 750 mm lifting length: 190 mm |
15
|
50.1500.205CYLINDER (TILT CYLINDER) |
Length 1: 338 mm
Length 2: 622 mm lifting length: 284 mm |
16
|
50.1700.705CYLINDER (TILT CYLINDER) |
Height: 50 mm
Length: 659 mm Length: 890 mm |
17
|
50.1800.405CYLINDER (TILT CYLINDER) |
Length: 642 mm
lifting length: 457 mm Outer Diameter: 60 mm |
18
|
50.1944.606CYLINDER (TILT CYLINDER) |
Height: 55 mm
inner dia1: 42 mm inner dia2: 25 mm |
19
|
50.2145.806CYLINDER (TILT CYLINDER) |
D=Ø50 Ax=676
|
20
|
50.2280.303CYLINDER (TILT CYLINDER) |
Diameter [mm]: 60
Diameter 1 [mm] :40 Bore Diameter [mm]: 35 |
21
|
50.2380.233CYLINDER (TILT CYLINDER) |
Diameter 1 [mm]:40
Diameter 2 [mm]:59 Bore Diameter 1 [mm]:30 |
22
|
50.2444.206CYLINDER (TILT CYLINDER) |
Length [mm] 622.00
Length 320.00 Diameter [mm] 58.00 |
23
|
50.2545.306CYLINDER (TILT CYLINDER) |
L=643mm 1107 mm
|
24
|
50.2646.607CYLINDER (TILT CYLINDER) |
L=640 mm 450 mm
|
25
|
50.2742.406CYLINDER (TILT CYLINDER) |
|
26
|
50.2885.506CYLINDER (TILT CYLINDER) |
D=Ø50 Ax=650
|
27
|
50.2985.878CYLINDER (TILT CYLINDER) |
Diameter [mm]: 55
Diameter 1 [mm]: 28 Diameter 2 [mm]: 16 |
28
|
50.3085.925CYLINDER (TILT CYLINDER) |
Diameter [mm]: 60
Diameter 1 [mm]: 40 Bore Diameter [mm]: 30 |
29
|
50.3185.888CYLINDER (TILT CYLINDER) |
|
30
|
50.3285.927CYLINDER (TILT CYLINDER) |
Diameter [mm]: 60
Diameter 1 [mm]: 40 Bore Diameter [mm]: 25 |
31
|
50.3385.737CYLINDER (TILT CYLINDER) |
|
32
|
50.3408.729CYLINDER (TILT CYLINDER) |
L= 788 - 558 MM
|
33
|
50.3545.605CYLINDER (TILT CYLINDER) |
L: 689mm,890mm,87mm,T:42mm
Stroke : 231mm D=Ø42 Ax=593 |
34
|
50.3690.793CYLINDER (TILT CYLINDER) |
695 mm 1047 mm
|
35
|
50.3790.108CYLINDER (TILT CYLINDER) |
|
36
|
50.3890.264CYLINDER (TILT CYLINDER) |
|
37
|
50.3990.495CYLINDER (TILT CYLINDER) |
|
38
|
50.4090.280CYLINDER (TILT CYLINDER) |
Diameter 1 [mm]: 32
Diameter 2 [mm]: 53,5 Bore Diameter 1 [mm]: 25 |
39
|
50.4106.951CYLINDER (TILT CYLINDER) |
L : 668
|
40
|
50.4206.817CYLINDER (TILT CYLINDER) |
|
41
|
50.4306.576CYLINDER (TILT CYLINDER) |
|
42
|
50.4445.205CYLINDER (TILT CYLINDER) |
|
43
|
50.4480.842CYLINDER (TILT CYLINDER) |
Diameter [mm]: 60
Diameter 1 [mm]: 40 Bore Diameter [mm]: 35 |
44
|
50.4580.111CYLINDER (TILT CYLINDER) |
Length [mm]: 650
Pressure [bar]: 280 Diameter 1 [mm]: 38 |
45
|
50.4580.283CYLINDER (TILT CYLINDER) |
Bore Ø 1 [mm] - 30 Bore Ø 2 [mm] - 32 Diameter 1 [mm] - 25 Diameter 2 [mm] - 53.5 Length [mm] - 739 Pressure [bar] - 280 Stroke [mm] - 543 |
46
|
50.4680.630CYLINDER (TILT CYLINDER) |
Length [mm]: 650
Pressure [bar]: 280 Diameter 1 [mm]: 38 |
47
|
50.4685.572CYLINDER (TILT CYLINDER) |
Diameter [mm]: 60
Diameter 1 [mm]: 40 Bore Diameter [mm]: 30 |
48
|
50.4743.313CYLINDER (TILT CYLINDER) |
Length: 841 mm
No. of Connections: 2 Outer Diameter: 69 mm |
49
|
50.4745.225CYLINDER (TILT CYLINDER) |
Bore Ø 1 [mm] - 42 Bore Ø 2 [mm] - 20 Length [mm] - 750 Pipe Ø [mm] - 60 Pressure [bar] - 250 Stroke [mm] - 375 Thread Measurement 1 - M12 x 1,5 Thread Measurement 2 - M8 x 1,25 |
50
|
50.4885.921CYLINDER (TILT CYLINDER) |
Length: 582 mm
lifting length: 404 mm No. of Connections: 2 |
51
|
50.4890.350CYLINDER (TILT CYLINDER) |
Length 605 mm
lifting length 353 mm No. of Connections 3 |
52
|
50.4980.285CYLINDER (TILT CYLINDER) |
Length 548 mm
Width 1 47.5mm Width 28mm |
53
|
50.5358.006CYLINDER (TILT CYLINDER) |
Length: 335 mm/ 212mm
D=Ø60 Ax=335 |
54
|
50.6181.123CYLINDER (TILT CYLINDER) |
Diameter 50mm
Length 889mm Width 1 58mm |
55
|
50.8557.505CYLINDER (TILT CYLINDER) |
Diameter 50mm
Length 711mm Width 1 28mm |
56
|
50.8700.705CYLINDER (TILT CYLINDER) |
External Thread Pressure Side M12 x 1,5
External Thread Suction Side M12 x 1,5 Length 660 mm |
57
|
50.8908.742CYLINDER (TILT CYLINDER) |
M14x1,5 / Ø28x Ø850
|
58
|
50.9008.200CYLINDER (TILT CYLINDER) |
|
59
|
50.9100.105CYLINDER (TILT CYLINDER) |
Length 698 mm
Diameter 60mm Width 1 28mm |
60
|
50.9200.205CYLINDER (TILT CYLINDER) |
Diameter 50mm
Length 698mm Width 1 28mm |
61
|
50.9381.124CYLINDER (TILT CYLINDER) |
Length 940 mm
Pipe Diameter 50 mm Pressure 250 bar |
62
|
50.9981.099CYLINDER (TILT CYLINDER) |
Length: 470 mm/ 350mm
D=Ø50 Ax=470 |
