1
|
91.0100.020VALVE ( AIR DRYER ASSEMBLY ) |
Size: 142 x 154 x 255
Max. operating pressure - 13.0 bar Opening pressure - 13.00 bar |
2
|
91.0200.030VALVE ( AIR DRYER ASSEMBLY ) |
Port thread 1 - M22 x 1.5
Port thread 22 - M16 x 1.5 Size- 309 x 304 x 200 |
3
|
91.0300.031VALVE ( AIR DRYER ASSEMBLY ) |
Port thread 11 - M22 x 1.5
Port thread 12 - M12 x 1.5 (closed) Port thread 21 - M22 x 1.5 |
4
|
91.0400.001VALVE ( UNLOADER ) |
Port Thread : M 22 x 1.5 mm
|
5
|
91.0500.140VALVE ( UNLOADER ) |
Port Thread : M 22 x1.5 mm
8.1 BAR |
6
|
91.0600.850VALVE ( UNLOADER ) |
Port Thread: M 22x1.5 mm,
Control Range [bar]: 0.7+0.4, Cut-off Pressure [bar]: 9.5?0.2, |
7
|
91.0700.740VALVE ( UNLOADER ) |
Port Thread: M 22x1.5 mm,
Control Range [bar]: 0.6+0.4, Cut-off Pressure [bar]: 8.1?0.2, |
8
|
91.0800.080VALVE ( BRAKE ) |
Port Thread: M 16x1.5 mm
2 x M12 GAUGE PORT |
9
|
91.0900.032VALVE ( DRAIN ) |
Port Thread: M 22x1.5
Weight [kg]: 0,047 |
10
|
91.10044.544VALVE ( CHARGING OVER FLOW) SMALL HOLE 16 |
Setting : 6.0 bar
Ports : 1+2=M16 x 1.5 Comment : Adjustable (3.5-6.0) bar |
11
|
91.10108.200VALVE ( PRESSURE LIMITING ) |
Ports : 1+2 =M16 x 1.5
Setting : 7.4 bar |
12
|
91.10299.001VALVE ( DIRECTIONAL CONTROL ) |
Ports 1,2,3 : M12 x 1.5
Comment : L=37.9 -Steel Button |
13
|
91.10380.759VALVE ( MULTIWAY ) |
Ports : 1,2 :M10 x 1
|
14
|
91.10442.036VALVE ( DIRECTIONAL CONTROL ) |
Ports 1,21 : M16 x 1.5 Voss , 22,3 : M12 x 1.5
|
15
|
91.10543.725VALVE ( SOLENOID ) |
All Ports : M22 x 1.5 , DC :24V
Max Working Presure : 20 bar |
16
|
91.10680.716VALVE ( PRESSURE CONTROL ) |
DC : 24V
Ports 1 ,21 , 22 : M16 x 1.5 Installation Holes :2x Ø10 |
17
|
91.10799.941VALVE ( MODULATOR RELAY ) |
Ports : RES=M22 x 1.5 , DEL = M16 x 1.5
Con=M16 x 1.5 Solenoid :M27 x 1.0 |
18
|
91.10880.094VALVE ( AIR DRYER ) |
Ports 1 ,2: M22 x 1.5
Ports 4 ,23 : M12 x 1.5 Intsalation hole thread :3xM12 x 1.5-6H |
19
|
91.10980.246VALVE ( MAIN CYLINDER) |
Ø28,57
|
20
|
91.1100.500VALVE ( SENSOR CLUTCH PEDAL ) |
Port Thread: M 16x1.5 mm
Weight [kg]: 0,954 Operating Pressure [bar]: 20 |
21
|
91.11080.710VALVE ( MAIN CYLINDER ) |
Pred:0.4bar ,Ratio : 2:1
Ports : 11,12,21,22=M22x1.5 Voss Port4=M16x1.5 Voss |
22
|
91.11180.628VALVE ( GEAR SHIFTING ) |
|
23
|
91.11280.218VALVE ( MAIN CYLINDER ) |
|
24
|
91.11300.406VALVE ( MAIN CYLINDER ) |
|
25
|
91.11400.370VALVE ( CLUTCH SERVO ) |
DIA:76.5MM
STROKE:85MM AIR(11):M16X1.5 |
26
|
91.11580.770VALVE ( CLUTCH SERVO ) |
DIA:100MM
STROKE:70MM AIR(11):M16X1.5 |
27
|

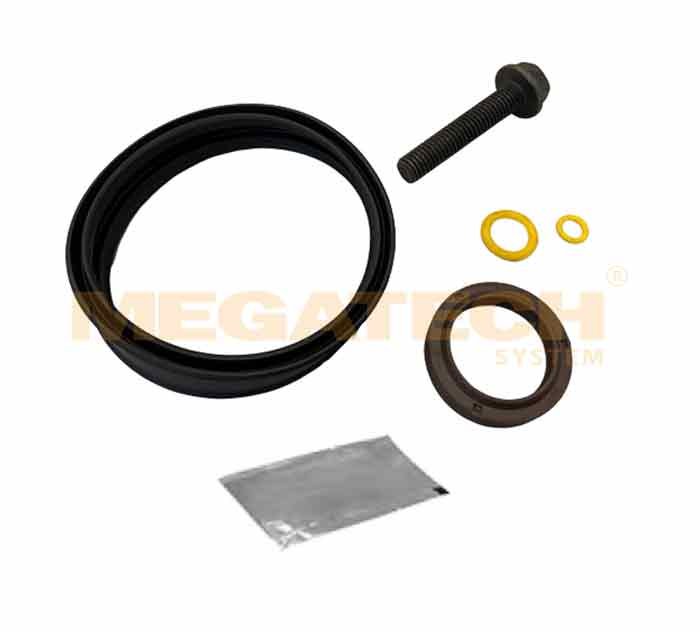

91.11600.001VALVE ( LEVELLING REPAIR KIT ) |
|
28
|
91.11742.700VALVE ( SILENCER ) |
DIA:100MM
STROKE:70MM AIR(11):M16X1.5 |
29
|
91.11844.315VALVE ( AIR DRYER ) |
Opening Pressure [bar] - 14.5
Operating pressure to [bar]max. - 13 Parameterwith port - 4/25 |
30
|
91.11980.296VALVE (EMERGENCY ) |
PORTS:
1-2=M22X1.5 M16X1.5 |
31
|
91.1200.162VALVE ( FOUR CIRCUIT PRI ) |
Port Thread: M 22x1.5
|
32
|
91.12045.701VALVE ( EMERGENCY RELAY ) |
PORT:1X2X1-2X4
M22X1.5 |
33
|
91.12145.050VALVE ( RELAY ) |
PORT 1,2 M22X1.5
PORT 41,42 M16X1.5 |
34
|
91.12280.420VALVE ( GEAR SHIFTING ) |
|

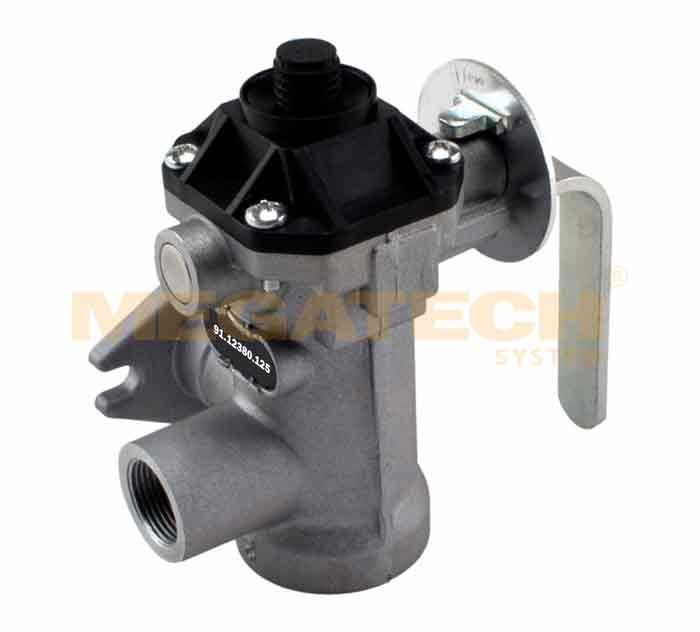

35
|
91.12380.125VALVE ( BRAKE POWER REGULATOR ) |
PORT:1+2=M22X1.5
|
36
|
91.12445.305VALVE ( TRAILER CONTROL ) |
PORTS: 11,12,22,
41,42=M22X1.5 43=M16X1.5 VOSS |
37
|
91.12543.750VALVE ( CONTROL ) |
PORT 1=M22X1.5
PORTS 2,4=M16X1.5 PORTS 41,42=M12X1.5 |
38
|
91.12608.010VALVE ( HAND BRAKE ) |
PORTS:1, 2=M16X1.5
|
39
|
91.12708.817VALVE ( HAND BRAKE ) |
PORTS 1,21,22
M16X1.5 |
40
|
91.12845.002VALVE ( RELAY ) |
PORTS: 4=M16X1.5,
M22X1.5 |
41
|

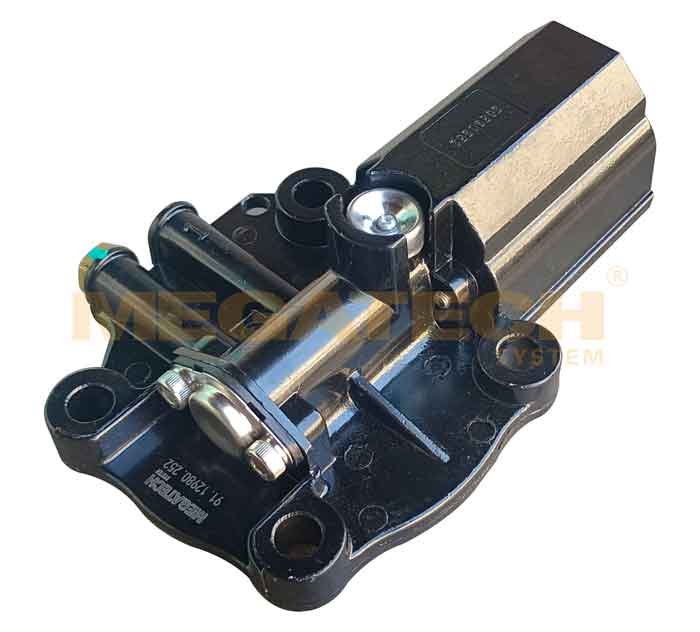

91.12980.252VALVE ( SOLENOID ) |
|
42
|
91.1300.452VALVE ( CIRCUIT PROTECTION ) |
|
43
|
91.13008.250VALVE ( HAND BRAKE ) |
|
44
|
91.13180.156VALVE ( SENSOR CLUTCH PEDAL ) |
Outer Dim: 25MM
Inner Thread: M10 x1 mm Port: 2 |
45
|
91.13280.336VALVE ( AIR SUSPENSION ) |
PORT1:M12X1.5
PORT 12:M16X1.5 PORT21,22: M12X1.5 |
46
|
91.13380.584VALVE ( CLUTCH SERVO ) |
|
47
|
91.13480.585VALVE ( CLUTCH SERVO ) |
|
48
|
91.13699.180VALVE ( SLACK ADJUSTER ) |
Operating Mode : Manual Bore Ø 2 : 12.7 mm Bore Ø 1 : 12.7 mm Bore Distance 2 : 178 mm Bore Ø 3 : 12.7 mm Weight : 2.54 kg Bore Ø : 12.7 mm Bore Distance 1 : 157 mm Bore Distance : 127 mm Tooth System : SAE 1 1/2'' - 10 Spl Bore Distance 3 : 203 mm Weight : 2.76 Kg |
49
|
91.13745.410VALVE ( CLUTCH SERVO ) |
|
50
|
91.13800.010VALVE ( RELAY ) |
Technical Specifications:
Operating pressure to [bar] max.10 Thread Measurement 1 M16 x 1,5 |
51
|
91.13957.808VALVE ( HAND BRAKE ) |
Operating pressure to [bar] max. : 8.5 |
52
|
91.1400.100VALVE ( CIRCUIT PROTECTION ) |
Port Thread: M 16x1.5 mm
|
53
|
91.14009.340VALVE ( SLACK ADJUSTER ) |
Bore Distance 1 [mm]Lb1 : 120
Bore Distance 2 [mm]Lb2 : 150 Bore Distance 3 [mm]Lb3 : 180 |
54
|
91.14109.130VALVE ( SLACK ADJUSTER ) |
Operating Mode : Manual
Bore Distance 1 [mm]Lb1 : 135 Bore Distance 2 [mm]Lb2 : 150 |
55
|
91.14209.610VALVE ( SLACK ADJUSTER ) |
Operating Mode : Manual
Bore Distance 1 [mm]Lb1 : 120 Bore Distance 2 [mm]Lb2 : 150 |
56
|
91.14342.001VALVE ( RELAY ) |
104 x 108 x 114
Port thread 1M22 x 1.5 Port thread 2M22 x 1.5 |
57
|
91.14443.881VALVE ( HAND BRAKE ) |
M16 x 1,5 |
58
|
91.14645.740VALVE ( FOOT BRAKE ) |
107 x 230 x 99
Port thread 11M22 x 1.5 Port thread 12M22 x 1.5 |
59
|
91.14747.202VALVE ( AIR DRIVER FILTER ) |
141 x 167 x 144
Port threads - M39 x 1.5 |
60
|
91.14880.711VALVE ( LEVEL SENSOR ) |
Bore - 8.6 Length - 117 Number of Poles - 3 Thread Size - M8 x 1,25 |
61
|
91.14942.002VALVE ( PRESSURE LIMITING ) |
49 x 83 x 126
Port thread 1 - M22 x 1.5 JED-388 Port thread 2 - M22 x 1.5 JED - 152 |
62
|
91.1500.158VALVE ( CIRCUIT PROTECTION ) |
Port Thread: M 16x1.5 mm
|
63
|
91.15080.557VALVE ( LEVEL SENSOR ) |
Height - 83 Length - 100 Voltage - 24 Width - 68 |
64
|
91.15144.030VALVE ( MULTI WAY ) |
|
65
|
91.15241.010VALVE ( RELAY ) |
Connecting thread - M22 x 1,5 perating pressure to max.10 Thread Measurement 1 - M16 x 1,5 Thread Measurement 2 - M22 x 1,5 |
66
|
91.15380.173VALVE ( RELAY VALVE GEAR BOX ) |
Length [mm] - 92.5 |
67
|
91.15445.238VALVE ( SLACK ADJUSTER, AUTOMATIC, LEFT ) |
Bore Distance [mm] - 145
Bore Ø [mm] - 14 Number of Teeth - 26 |
68
|
91.15545.338VALVE ( SLACK ADJUSTER, AUTOMATIC, RIGHT ) |
Bore Distance [mm] - 145
Bore Ø [mm] - 14 Number of Teeth - 26 |
69
|
91.15657.438VALVE ( SLACK ADJUSTER, AUTOMATIC, RIGHT ) |
Bore Distance [mm] - 145
Bore Ø [mm] - 14 Number of Teeth - 26 |
70
|
91.15757.938VALVE ( SLACK ADJUSTER, AUTOMATIC, LEFT ) |
Bore Distance [mm] - 145
Bore Ø [mm]b14 Number of Teeth - 26 |
71
|
91.15845.038VALVE ( SLACK ADJUSTER, AUTOMATIC, LEFT ) |
Bore Distance [mm] - 145
Bore Ø [mm] - 14 Number of Teeth - 26 |
72
|
91.15957.138VALVE ( SLACK ADJUSTER, AUTOMATIC, RIGHT ) |
Bore Distance [mm] - 145
Bore Ø [mm] - 14 Number of Teeth - 26 |
73
|
91.1600.100VALVE ( BRAKE ) |
Operating Pressure [bar]: 8
Port Thread: 1=M 22 2,4=M 22 |
74
|
91.16045.131VALVE ( AIR DRYER ASSEMBLY ) |
|
75
|
91.16157.660VALVE ( HYDRAULIC CLUTCH SERVO ) |
|
76
|
91.16258.106VALVE ( MULTI-WAY ) |
|
77
|
91.16380.003VALVE ( SOLENOID ) |
|
78
|
91.16580.893VALVE ( SILENCER ) |
|
79
|
91.16680.183VALVE ( RELAY VALVE ) |
Port thread 1M22 x 1.5 JED-152
Port thread 212x M16 x 1.5 JED - 152 Port thread 22M16 x 1.5 JED - 152 |
80
|
91.16745.404VALVE (CARTRIDGE ) |
RENAULT
|
81
|
91.1700.200VALVE ( RELAY ) |
Operating Pressure [bar]: 10
Port Thread: 1=M22 2,4=M16 |
82
|
91.17057.120VALVE CLUTCH SERVO |
|
83
|
91.17281.234VALVE ( PIPE CONNECTOR ) |
|
84
|
91.17380.558VALVE SOLENOID |
|
85
|
91.17480.566VALVE SOLENOID |
|
86
|
91.17580.771VALVE SOLENOID |
height 58 mm
Length 75 mm Voltage 24 V |
87
|
91.17680.717VALVE CLUTCH SERVO |
|
88
|
91.17780.825VALVE CLUTCH SERVO |
Operating Fluid: Brake Fluid
|
89
|
91.17880.384VALVE CYLINDE END CAP |
Diameter 10,9 mm
internal thread M10 x 1 Length 128 mm |
90
|
91.17980.875VALVE LOCKING CYLINDER |
Length 147 mm
No. of Connections 1 Tensile Strength Grade 12.9 |
91
|
91.1800.501VALVE ( BRAKE ) |
All Ports Thread : M 22x1.5
|
92
|
91.18090.581VALVE CLUTCH SERVO |
|
93
|
91.18158.470VALVE SILENCER |
|
94
|
91.18242.157VALVE GEARBOX AIR VALVE |
|
95
|
91.18300.108VALVE CLUTCH SERVO |
Operating Fluid Brake Fluid
|
96
|

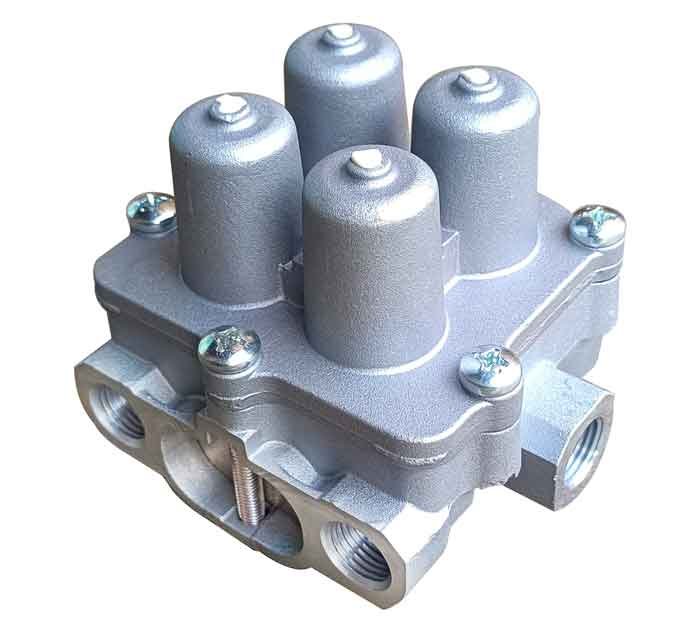

91.18441.450VALVE 4 CIRCUIT PROTECTION VALVE |
|
97
|
91.18581.105VALVE 4 CIRCUIT PROTECTION VALVE |
|
98
|
91.18681.109VALVE CLUTCH SERVO |
|
99
|
91.18781.781VALVE RELAY VALVE |
No. of Connections 4
|
100
|
91.18880.598VALVE ( AIR DRYER CATRIDGE ) |
Spanner Size: 30
Height [mm]: 179.00 Outer Diameter [mm]: 143.00 |
101
|
91.18958.280VALVE ( RELAY VALVE ) |
Thread Size 1: M16 x 1,5
Thread Size 2: M22 x 1,5 |
102
|
91.1900.201VALVE ( BRAKE ) |
Port threads: M 16x1.5
|
103
|
91.19081.230VALVE ( 3/2-WAY VALVE) |
|
104
|
91.19180.751VALVE ( AIR DRYER ASSY ) |
276 x 161 x 152
Scania 4-Serie Bus |
105
|
91.19280.610VALVE ( HAND BRAKE ) |
161 x 111 x 63
|
106
|
91.19380.922VALVE ( PRESSURE RELIEF ) |
25 x 60 x 25
|
107
|
91.19480.849VALVE ( CIRCUIT PROTECTION ) |
|
108
|
91.19585.965VALVE ( CIRCUIT PROTECTION ) |
Renault 4 Way Multi Circuit Protection Valve 7 Port
|
109
|
91.19685.971VALVE ( CIRCUIT PROTECTION ) |
Thread Size M22 x 1,5
Operating pressure to [bar] 20.00 Opening pressure (21) [bar] 7.00 |
110
|
91.19743.910VALVE ( AIR DRYER ASSY ) |
|
111
|
91.19881.110VALVE ( CIRCUIT PROTECTION ) |
93 x 113 x 91
|
112
|
91.19980.154VALVE (TURBO CHARGER ) |
|
113
|
91.2000.101VALVE ( CONTROL ) |
All Ports Thread : M 16 x1.5
|
114
|
91.20080.159VALVE ( BRAKE ) |
|
115
|
91.20180.063VALVE ( SOLENOID ) |
Bore Dia: 9mm
Number of Holes: 3 Cable Length: 350mm |
116
|
91.20280.072VALVE ( SOLENOID ) |
|
117
|
91.20345.004VALVE ( AIR DRYER FILTER ) |
|
118
|
91.20458.257VALVE ( DIVERTER ) |
|
119
|
91.20557.023VALVE ( CONTROL VALVE ) |
Thread Size 1: M16 x 1,5
Thread Size 2: M22 x 1,5 |
120
|
91.20658.170VALVE ( HAND BRAKE ) |
Thread Size M16 x 1,5
Operating pressure to [bar] 10 |
121
|
91.20758.041VALVE ( HAND BRAKE ) |
|
122
|
91.20858.082VALVE ( HAND BRAKE ) |
Scania F-, K-, N-Serie
Scania P-, G-, R-, T-Serie |
123
|
91.20958.011VALVE ( PRESSURE RELIEF ) |
Pressure [bar] 13
|
124
|
91.2100.021VALVE ( CONTROL ) |
All Ports Thread : M 16 x1.5
|
125
|
91.21185.727VALVE ( CLUTCH SERVO ) |
|
126
|
91.21285.876VALVE ( CLUTCH SERVO ) |
|
127
|
91.21300.025SWIFT JOINT RED 22*1.5 |
SWIFT JOINT RED 22*1.5
|
128
|
91.21400.017SWIFT JOINT YELLOW 22*1.5 |
SWIFT JOINT YELLOW 22*1.5
|
129
|
91.21542.060VALVE ( ABS SOLENOID VALVE ) |
Thread Size 1: M16 x 1,5
Thread Size 2: M22 x 1,5 Operating pressure to [bar]: 13 |
130
|
91.21680.657VALVE ( ECAS VALVE ) |
|
131
|
91.21780.551VALVE ( AIR DRYER FILTER ) |
|
132
|
91.21881.000VALVE ( HAND BRAKE VALVE ) |
|
133
|
91.21980.073VALVE ( SOLENOID ) |
Volvo FE, FL, F, NL, N
|
134
|
91.2200.081VALVE ( BRAKE POWER REGULATOR ) |
All Ports Thread : 1= M 22 , 2=M22 ,4 = M16
|
135
|
91.22080.451VALVE ( SOLENOID ) |
Thread Size: M22 x 1,5
Voltage: 24 |
136
|
91.22180.168VALVE ( GEARBOX ) |
Length: 92.50 MM
|
137
|
91.22380.012VALVE ( CLUTCH SERVO ) |
Volvo FL, FE, VM
Renault C-Serie, D-Serie, Midlum, Premium |
138
|
91.22445.648VALVE ( CLUTCH SERVO ) |
|
139
|
91.22545.472VALVE ( SOLENOID ) |
Mercedes-Benz Actros 2,3,4
Mercedes-Benz Antos Mercedes-Benz Arocs |
140
|
91.22648.126VALVE ( SOLENOID ) |
|
141
|
91.22748.213VALVE ( TRAILER CONTROL VALVE ) |
|
142
|
91.22858.981VALVE ( HAND BRAKE VALVE ) |
Thread Size: M16 x 1,5
Operating pressure :10 |
143
|
91.22958.706VALVE ( MULTI-PROTECTION VALVE ) |
Thread Size 1 M16 x 1,5
Thread Size 2 M22 x 1,5 |
144
|
91.23058.344VALVE ( RELAY VALVE ) |
Thread Size: M22 x 1,5
Operating pressure: 8.50 |
145
|
91.23148.312VALVE ( PRESSURE LIMITING VALVE ) |
Renault Premium, Magnum, Kerax
MAN Chassis, Neoplan, Lion's, N-Busse, TG-Serie Iveco Arway, Domino, EuroRider, Magelys, Powerstar, Stralis, Trakker |
146
|
91.23248.024VALVE ( DOUBLE CHECK VALVE ) |
Size : 34 x 48 x 75
|
147
|
91.23380.249VALVE ( SOLENOID VALVE ) |
Volvo FM, Volvo FL, Volvo FH
|
148
|
91.23458.304VALVE ( SOLENOID VALVE ) |
Mercedes-Benz Actros, 2,3
|
149
|
91.23558.571VALVE ( DIRECTION CONTROL VALVE ) |
Thread Size M14 x 1,5
Pressure [bar] 10.00 |
150
|
91.23658.957VALVE ( SOLENOID VALVE ) |
Mercedes-Benz Actros 1, 2, 3
Mercedes-Benz Atego 1, 2 Mercedes-Benz Axor |
151
|
91.23780.015VALVE ( SOLENOID ) |
Volvo D 6-engines
Volvo D 7-engines Volvo 8000-Serie |
152
|
91.2380.860VALVE ( RELAY ) |
SUP = 3/4 NPT
RES = 3/8 NPT All other Port Thread: 1/4 NPT |
153
|
91.23842.572CLUCH SERVO |
Scania F-, K-, N-Serie
Scania L-, P-, G-, R-, S-Serie Scania P-, G-, R-, T-Serie |
154
|
91.23985.660VALVE ( ECAS VALVE ) |
Thread Size M16 x 1,5
Voltage [V] 24 |
155
|
91.2400.240VALVE ( OVERFLOW ) |
Port Thread: M 22x1.5
Weight [kg]: 0,432 |
156
|
91.24081.773VALVE ( LEVER VALVE, SUSPENSION ) |
Renault C-Serie, K-Serie, T-Serie
Volvo FH, FM |
157
|
91.24180.052CLUCH SERVO |
Volvo VM, FH, FM
|
158
|
91.24280.421VALVE ( LEVELING VALVE ) |
Scania L-, P-, G-, R-, S-Serie
Scania P-, G-, R-, T-Serie |
159
|
91.24381.016VALVE BLOCK |
MAN TG-Serie
|
160
|
91.24400.167CLUCH SERVO |
Renault Magnum, Premium
Volvo B12, FM, FH, NH |
161
|
91.24500.168CLUCH SERVO |
|
162
|
91.24657.502CLUCH SERVO |
Iveco EuroStar, EuroTech, Stralis, Trakker
|
163
|
91.24785.110VALVE ( FOOT BRAKE ) |
Mercedes-Benz Actros 2, 3
|
164
|
91.24885.549CLUCH SERVO |
Renault Kerax
|
165
|
91.2500.141VALVE ( MULTIWAY ) |
Port Thread: M 12 x 1.5
L=95.6 |
166
|
91.25290.457VALVE ( SOLENOID ) |
Actros 1, 2, 3, 4
Antos Arocs |
167
|
91.25381.152VALVE ( MASTER CYLINDER ) |
MAN Chassis, Lion's, S-Busse, TG-Serie, ÜL-Busse, Neoplan
|
168
|
91.25448.581VALVE ( HAND BRAKE ) |
Actros 1, Axor, Atego 1, Econic 1
|
169
|
91.25542.381VALVE ( HAND BRAKE ) |
Mercedes-Benz Actros 2, 3
|
170
|
91.25643.205VALVE ( BRAKE SIGNAL TRANSMITTER-1 ) |
Mercedes-Benz Actros 1
Atego 1 Axor |
171
|
91.25744.412VALVE ( LOAD SENSING ) |
Actros 4
Antos Arocs |
172
|
91.2600.121VALVE ( PUSH BUTTON ) |
Port Thread: M 12 x 1.5
L=37.9 |
173
|
91.2700.103VALVE ( CABIN LEVELLING ) |
Port Thread: M 10 x 1
|
174
|
91.2800.111VALVE ( CABIN LEVELLING ) |
|
175
|
91.2900.022VALVE ( AIR SUSPENSION ) |
All Ports Thread: M 12x1.5
|
176
|
91.3000.221VALVE ( COUPLING HEAD YELLOW 16MM AUTO) |
Port Thread: M 16x1.5 Yellow
|
177
|
91.3100.125VALVE ( COUPLING HEAD YELLOW 22MM AUTO) |
Port Thread: M22 x1.5 Yellow
|
178
|
91.3200.215VALVE ( COUPLING HEAD RED 16MM AUTO) |
Port Thread: M 16x1.5 Red
|
179
|
91.3300.115VALVE ( COUPLING HEAD RED 22MM AUTO) |
Port Thread: M 22x1.5 Red
|
180
|
91.3400.216VALVE ( COUPLING HEAD RED 16MM MANUAL ) |
Port Thread: M 16x1.5 Red
|
181
|
91.3500.116VALVE ( COUPLING HEAD RED 22MM MANUAL ) |
Port Thread: M 22 x1.5 Red
|
182
|
91.3600.227VALVE ( COUPLING HEAD YELLOW 16MM MANUAL) |
Port Thread: M 16x1.5 Yellow
|
183
|
91.3700.128VALVE ( COUPLING HEAD YELLOW 22MM MANUAL ) |
Port Thread: M 22 x1.5 Yellow
|
184
|
91.3800.208VALVE ( SLEEVE ) |
Port Thread: 1= M16
all other port thread = M12 |
185
|
91.3980.392VALVE ( CLUTCH SERVO ) |
|
186
|
91.4080.669VALVE ( CLUTCH SERVO ) |
Dia:95mm
stroke: 70mm Air(11):M16x1.5 |
187
|
91.4280.361VALVE ( CLUTCH SERVO ) |
Dia 102 mm
Stroke 76.8 mm Air M16 x 1.5 |
188
|
91.4380.014VALVE ( MASTER CYLINDER ) |
Thread M 14x1.5
|
189
|
91.4515.005VALVE (OVERFLOW) |
|
190
|
91.4645.940VALVE ( AIR DRYER ASSEMBLY ) |
|
191
|
91.4745.941VALVE ( AIR DRYER ASSEMBLY ) |
|
192
|
91.4880.186VALVE ( SOLENOID / LOWER ) |
Port 1 :M16x1.5
Port 11,12,13,21,22:M12x1.5 Port 3 :M22x1.5 |
193
|
91.4980.955VALVE ( RELAY ) |
Port 1 :M22x1.5
Port 2,4=M16x1.5 41,42=M12x1.5 |
194
|
91.5080.728VALVE ( SUSPENSION ) |
Port all :M12x1.5
|
195
|
91.5180.297VALVE ( GEAR BOX ) |
Supply 1/8â€PT
Delivery 1/8â€PT |
196
|
91.5280.324VALVE ( SOLENOID ) |
|
197
|
91.5381.240VALVE ( OVERFLOW ) |
Ports:1+2=M22x1.5
Setting : 6.0 bar |
198
|
91.5480.565VALVE ( BRAKE ) |
Ports : M22x1.5
|
199
|
91.5585.555VALVE ( HAND BRAKE ) |
Ports All :M14x1.5
|
200
|
91.5681.055VALVE ( HAND BRAKE ) |
Port All :M14x1.5
|
201
|
91.5745.040VALVE ( HAND BRAKE ) |
Port All :M14x1,5 mm:
|
202
|
91.5881.113VALVE ( HAND BRAKE ) |
Port Thread :M16x1.5 oss
Brake 73 voss push fitting |
203
|
91.5900.190VALVE ( HAND BRAKE ) |
Ports 2xM16x1.5 voss
|
204
|
91.6042.040VALVE ( HAND BRAKE ) |
Ports 3xM16x1.5 voss
|
205
|
91.6100.600VALVE ( MULTI-CIRCUIT PROTECTION ) |
Port 1 :M22x1.5 Voss
Port 21,22,,23,24 :M16x1.5 Voss Port 21,22,,23,24 Opening Pressure 7.0 bar |
206
|
91.6285.020VALVE ( CONTROL ) |
|
207
|
91.6381.220VALVE ( MULTI-CIRCUIT PROTECTION ) |
Port 1 M11x1.5
Ports 22,23,24:M16x1.5 Opening pressure 21,22,23 6.9 bar |
208
|
91.6443.310VALVE ( CLUTCH SERVO ) |
Strok : 72mm
Air : M16x1.5 Hyd : M14x1.5 |
209
|
91.6500.518VALVE ( CLUTCH BOOSTER ) |
Dia :102mm
Stroke : 70mm Air :M16x1.5 |
210
|
91.6681.015VALVE ( CONTROL ) |
Pred :0.2 bar
Ports : 11,12,22,41,42=M22x1.5 Voss 43=M16x1.5 Voss |
211
|
91.6785.662VALVE ( BRAKE ) |
Port Thred : Ø12
|
212
|
91.6800.000VALVE ( COMPRESSED-AIR SYSTEM ) |
Pred : 0.25 bar
All Ports : M16x1.5 |
213
|
91.6981.520VALVE ( BRAKE ) |
Ports : 1-2=M22 , 2=4xM16+2xM22 Port 4=M16
Comment : Adjustable 0 bar to 1 bar |
214
|
91.7008.090VALVE ( BRAKE ) |
Pred : 0.3 bar
All Ports : M16x1.5 |
215
|
91.7142.006VALVE ( BRAKE ) |
Cut -out Pressure : 8.1bar
Ports :1,21=M22X1.5 Port1-2 M16X1.5 |
216
|
91.7208.031VALVE ( COMPRESSED-AIR SYSTEM ) |
Ports 1,2,M16x1.5
|
217
|
91.7380.071VALVE ( OVERFLOW ) BIG HOLE 22 |
Settings : 6.0 bar
Ports : 1+2=M22x1.5 |
218
|
91.7445.070VALVE ( AIR DRYER ) |
DC : 24V Port 11:M22x1.5
Port 12: M12x1.5, Port : M16x1.5 Ports : 23,24,25,26,27,28 Opening pressure |
219
|
91.7509.516VALVE ( RELEASE ) |
Ports : 1,2,3 : M22x1.5
|
220
|
91.7680.231VALVE ( MULTIWAY ) |
|
221
|
91.7742.818VALVE ( CLUTCH SERVO ) |
Diameter : 102 mm
Stroke : 85 mm Air :M16x1.5 |
222
|
91.7881.065VALVE ( CLUTCH BOOSTER ) |
Diameter : 102 mm
|
223
|
91.7985.830VALVE ( CLUTCH SERVO ) |
Diameter : 76.5 mm
Stroke : 85 mm Air(11) : M16 x 1.5 |
224
|
91.8085.612VALVE ( CLUTCH BOOSTER ) |
Diameter : 100 mmm
Stroke : 70 mm Air (11): M16 x 1.5 |
225
|
91.8108.863VALVE ( CLUTCH BOOSTER ) |
Diameter : 100 mm
Stroke : 85 mm Air : M16 x 1.5 |
226
|
91.8281.016VALVE ( DIRECTIONAL CONTROL ) |
Ports : 1,2 : M10 x 1
|
227
|
91.8344.757VALVE ( MULTIWAY ) |
Ports : M12 x1.5
|
228
|
91.8441.457VALVE ( GEARBOX ) |
Ports : 1, 21 , 22 : M12 x1.5
|
229
|
91.8580.934VALV ( DRIVER CAB SUSPENSION ) |
All ports : M10 x 1.5
Comment :0.5 bar |
230
|
91.8699.000VALVE ( AIR DRYER BASE ) |
Port 1 : M22 x 1.5
Port 21 : M22 x 1.5 Port 22 : M12 x 1.5 |
231
|
91.8781.076VALVE ( UNLOADER ) |
Ports : 1+21=M22 x 1.5 , 22=M12 x 1.5
Cut out Pressure : 8.1 bar |
232
|
91.8880.491VALVE ( BRAKE ) |
Ports : M12 x 1.5
Other Ports : M16 x 1.5 Pred : 0.2 bar |
233
|
91.8945.606VALVE ( MULTI-CIRCUIT PROTECTION ) |
Port1 : M22 x 1.5
Ports 21 , 22 : M16 x 1.5 Opening Pressure : 21,22 : 6.0 bar |
234
|
91.9042.020VALVE ( MULTI CIRCIUT PROTECTION ) |
Port 1 Flange
Port Main Feeds M22 x 1.5 Voss Open 1+2 : 9.0 bar , Open 3+4 : 7.5 bar |
235
|
91.9199.600VALVE ( FOUR CIRCUTE PROTECTION ) |
Port1 : M22 x 1.5 Voss
Ports 21 , 22 , 23 ,24 : M22 x 1.5 Voss Ports 21 , 22 , 23 , 24 |
236
|
91.9280.588VALVE ( FOUR CIRCUTE PROTECTION ) |
