1
|

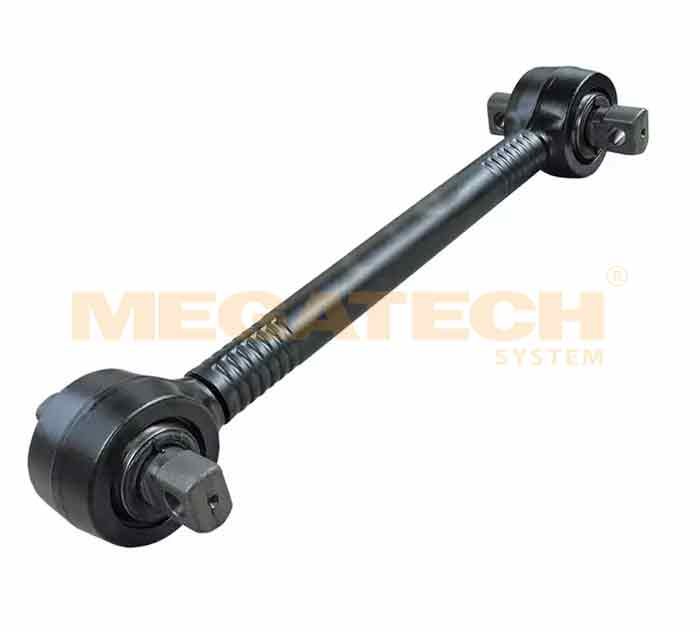

10.0180.314AXLE ROD (TRACK CONTROL ARM) |
L=649 d=Ø17/17 Ax=115/155
|
2
|
10.0281.092AXLE ROD (TRACK CONTROL ARM) |
Length: 630 mm
Diameter: 19 mm hole pitch: 130 mm |
3
|
10.0381.275AXLE ROD (TRACK CONTROL ARM) |
L=622 d=Ø19/19 Ax=130/130
|
4
|
10.0481.183AXLE ROD (TRACK CONTROL ARM) |
Diameter: 19 mm
hole pitch: 130 mm Length: 570 mm |
5
|
10.0581.140AXLE ROD (TRACK CONTROL ARM) |
Diameter 1: 18,5 mm
Diameter 2: 19 mm hole pitch: 102 mm |
6
|
10.0781.229AXLE ROD (TRACK CONTROL ARM) |
Diameter1: 19 mm
hole pitch: 130 mm Length: 573 mm |
7
|
10.0881.161AXLE ROD (TRACK CONTROL ARM) |
L=630 d=Ø19 Ax=130
|
8
|
10.0981.189AXLE ROD (TRACK CONTROL ARM) |
L=614 d=Ø19/19 Ax=130/130
|
9
|
10.1081.222AXLE ROD (TRACK CONTROL ARM) |
L=941 d=Ø17/17 Ax=115/115
|
10
|
10.1181.038AXLE ROD (TRACK CONTROL ARM) |
L=755 d=Ø19/19 Ax=130/130
|
11
|
10.1281.247AXLE ROD (TRACK CONTROL ARM) |
L=414 d=Ø23/23 Ax=130/130
|
12
|
10.1380.703AXLE ROD (TRACK CONTROL ARM) |
Fitting Position: Rear Axle
Bore Distance [mm]: 115 Bore Ø [mm]: 19 |
13
|
10.1480.503AXLE ROD (TRACK CONTROL ARM) |
Length: 671 mm
Outer Dia: 50 mm tube dia: 58 mm |
14
|
10.1580.052AXLE ROD (TRACK CONTROL ARM) |
Length: 510 mm
hole pitch: 130 mm tube dia: 45 mm |
15
|
10.1680.490AXLE ROD (TRACK CONTROL ARM) |
Length: 677mm
Fitting Position Rear Axle |
16
|
10.1780.552AXLE ROD (TRACK CONTROL ARM) |
L=641 d=Ø21 h=Ø48
|
17
|
10.1880.845AXLE ROD (TRACK CONTROL ARM) |
L=490 d=Ø17/17 Ax=100/100
|
18
|
10.1980.795AXLE ROD (TRACK CONTROL ARM) |
L=635 d=Ø14/14 Ax=125/30
|
19
|
10.2085.478AXLE ROD (TRACK CONTROL ARM) |
L=616,5 d=Ø19/19 Ax=115/115
|
20
|
10.2100.106AXLE ROD (TRACK CONTROL ARM) |
LENGTH: 610 mm
BUSHING HOLE DIA: 21 mm PIPE DIA:50 mm |
21
|
10.2245.305AXLE ROD (TRACK CONTROL ARM) |
Fitting Position: Rear Axle
Length [mm]: 667 |
22
|
10.2345.405AXLE ROD (TRACK CONTROL ARM) |
L=622 Ax=152/130/130 d=Ø25/25/25
|
23
|
10.2480.690AXLE ROD (TRACK CONTROL ARM) |
7882-2 7828-1
L=635 d=ø23/23 Ax=152/152 (d=ø95) |
24
|
10.2500.105AXLE ROD (TRACK CONTROL ARM) |
Length [mm]L622
Fitting Position: Rear Bore Distance 1 [mm]; 152 |
25
|
10.2600.205AXLE ROD (TRACK CONTROL ARM) |
Length 622 mm
Bore Diameter 25 mm Hole Pitch 1/ Hole Pitch 2 152/152 mm |
26
|
10.2785.746AXLE ROD (TRACK CONTROL ARM) |
L=568 d=Ø19/19 Ax=115/115
|
27
|
10.2845.295AXLE ROD (TRACK CONTROL ARM) |
L=621,5 d=ø25/23 Ax=152/130
(d=ø100) |
28
|
10.2900.106AXLE ROD (TRACK CONTROL ARM) |
Length: 585 mm
hole pitch: 152 mm Hole Dia: 21 mm |
29
|
10.3045.305AXLE ROD (TRACK CONTROL ARM) |
L=565
Fitting Position: Left and right |
30
|
10.3181.096AXLE ROD (TRACK CONTROL ARM) |
L=627 d=ø23/23 Ax=130/130
|
31
|
10.3281.117AXLE ROD (TRACK CONTROL ARM) |
Fitting Position: rear axle, middle
Length [mm]: 627 Bore Distance [mm]: 130 |
32
|
10.3381.087AXLE ROD (TRACK CONTROL ARM) |
L=627 d=ø25/25/25Ax=130/130/152
|
33
|
10.3481.052AXLE ROD (TRACK CONTROL ARM) |
hole pitch: 130 mm
Inner Diameter: 19 mm Length: 565 mm |
34
|
10.3580.829AXLE ROD (TRACK CONTROL ARM) |
Length : 677mm
Fitting Position: Rear Axle |
35
|
10.3745.007AXLE ROD (TRACK CONTROL ARM) |
L=850 d=ø17/17 Ax=100/100
|
36
|
10.3845.008AXLE ROD (TRACK CONTROL ARM) |
L=845 d=ø17/17 Ax=100/100
|
37
|
10.3900.006AXLE ROD (TRACK CONTROL ARM) |
L=500 d=ø21/21 Ax=152/152
D= ø80 d= ø21 Ax=152 H=24 |
38
|
10.4000.007AXLE ROD (TRACK CONTROL ARM) |
L=500 d=ø21/21 Ax=152/152
D= ø80 d= ø21 Ax=152 |
39
|
10.4100.332AXLE ROD (TRACK CONTROL ARM) |
L=553 d=ø21/21 Ax=152/152
|
40
|
10.4200.206AXLE ROD (TRACK CONTROL ARM) |
L=595 d=ø21/21 Ax=152/152
D= ø80 d= ø21 Ax=152 H=24 |
41
|
10.4300.006AXLE ROD (TRACK CONTROL ARM) |
L=595 d=ø21/21 Ax=152/153
D= ø80 d= ø21 Ax=152 |
42
|
10.4400.232AXLE ROD (TRACK CONTROL ARM) |
L=627 d=ø21/21 Ax=152/152
D= ø80 d= ø21 Ax=152 H=24 |
43
|
10.4500.233AXLE ROD (TRACK CONTROL ARM) |
L=627 d=ø21/21 Ax=152/152
D= ø80 d= ø21 Ax=152 |
44
|
10.4600.406AXLE ROD (TRACK CONTROL ARM) |
L=585 d=ø21/21 Ax=152/152
|
45
|
10.4700.106AXLE ROD (TRACK CONTROL ARM) |
L=579 d=ø21/21 Ax=152/152
|
46
|
10.4800.406AXLE ROD (TRACK CONTROL ARM) |
L=579 d=ø21/21 Ax=152/152
|
47
|
10.4900.806AXLE ROD (TRACK CONTROL ARM) |
L=629 d=ø21/21 Ax=152/152
|
48
|
10.5000.506AXLE ROD (TRACK CONTROL ARM) |
L=559 d=ø21/21 Ax=152/152
|
49
|
10.5100.206AXLE ROD (TRACK CONTROL ARM) |
L=660 d=ø21/21 Ax=152/152
|
50
|
10.5281.129AXLE ROD (TRACK CONTROL ARM) |
L=571 d=ø19/19 Ax=130/130
D=ø72 d=ø19 AX=130 |
51
|
10.5381.096AXLE ROD (TRACK CONTROL ARM) |
L=571 d=ø19/19 Ax=130/130
|
52
|
10.5481.037AXLE ROD (TRACK CONTROL ARM) |
L=500 d=ø19/19 Ax=130/130
|
53
|
10.5581.038AXLE ROD (TRACK CONTROL ARM) |
L=500 d=ø19/19 Ax=130/130
|
54
|
10.5681.042AXLE ROD (TRACK CONTROL ARM) |
L=762 d=ø19/19 Ax=130/130
|
55
|
10.5745.805AXLE ROD (TRACK CONTROL ARM) |
Length [: 622.00
Bore Distance 1: 152.00 Bore Distance 2: 130.00 |
56
|
10.5881.090AXLE ROD (TRACK CONTROL ARM) |
L=590 d=ø19/19 Ax=130/30
|
57
|
10.5981.025AXLE ROD (TRACK CONTROL ARM) |
L=455 d=ø19/19 Ax=130/130
|
58
|
10.6081.070AXLE ROD (TRACK CONTROL ARM) |
L=585 d=ø19/19 Ax=130/130
|
59
|
10.6181.078AXLE ROD (TRACK CONTROL ARM) |
Fitting Position: Rear Axle
Length [mm]: 627 Bore Distance [mm]: 152 |
60
|
10.6290.220AXLE ROD (TRACK CONTROL ARM) |
L=560 d=ø19/19 Ax=145/145
|
61
|
10.6390.237AXLE ROD (TRACK CONTROL ARM) |
L=535 d=ø19 / 19 Ax=145 / 145
|
62
|
10.6490.957AXLE ROD (TRACK CONTROL ARM) |
L=565 d=ø19/19 Ax=130/130
|
63
|
10.6590.403AXLE ROD (TRACK CONTROL ARM) |
L=555 d=ø19/19 Ax=130/130
|
64
|
10.6690.399AXLE ROD (TRACK CONTROL ARM) |
L=570 d=ø17/17 Ax=122/122
|
65
|
10.6790.727AXLE ROD (TRACK CONTROL ARM) |
L=692 d=ø17/17 Ax=122/122
|
66
|
10.6890.915AXLE ROD (TRACK CONTROL ARM) |
L=575 d=ø50 Ax=152/152
|
67
|
10.7006.479AXLE ROD (TRACK CONTROL ARM) |
L=665 d=ø46 Ax=130x130
|
68
|
10.7157.305AXLE ROD (TRACK CONTROL ARM) |
Length 625 mm
Tube diameter: 46 mm |
69
|
10.7280.293AXLE ROD (TRACK CONTROL ARM) |
L=660 Ax=30-145/30-145 d=Ø15/15
|
70
|
10.7380.338AXLE ROD (TRACK CONTROL ARM) |
Fitting Position: Rear Axle
Length [mm]: 662 |
71
|
10.7480.227AXLE ROD (TRACK CONTROL ARM) |
L=671 d=Ø23/23 Ax=130/130
|
72
|
10.7580.157AXLE ROD (TRACK CONTROL ARM) |
L=799 d=Ø17/17 Ax=115/115
|
73
|
10.7680.151AXLE ROD (TRACK CONTROL ARM) |
L=620 mm
|
74
|
10.7780.820AXLE ROD (TRACK CONTROL ARM) |
L=620 mm
|
75
|
10.7880.046AXLE ROD (TRACK CONTROL ARM) |
L=515 d=Ø/21/21 Ax=130/130
|
76
|
10.7980.958AXLE ROD (TRACK CONTROL ARM) |
L=571 d=Ø21/21 Ax=130/130
|
77
|
10.8080.523AXLE ROD (TRACK CONTROL ARM) |
L=666 d=Ø17/17 Ax=115/115
|
78
|
10.8180.661AXLE ROD (TRACK CONTROL ARM) |
L=599 mm
|
79
|
10.8285.611AXLE ROD (TRACK CONTROL ARM) |
L=705
|
80
|
10.8385.756AXLE ROD (TRACK CONTROL ARM) |
L=568 d=Ø/19/19 Ax=115/115
|
81
|
10.8485.028AXLE ROD (TRACK CONTROL ARM) |
Length: 613mm
Fitting Position: Rear Axle |
82
|
10.8590.031AXLE ROD (TRACK CONTROL ARM) |
Length 646,5 mm
tube dia: 62 mm hole pitch: 165 mm |
83
|
10.8706.468AXLE ROD (TRACK CONTROL ARM) |
L=659,5 Ax=130/130 d=Ø19/19
|
84
|
10.8806.731AXLE ROD (TRACK CONTROL ARM) |
hole pitch 130 mm
Inner Dia: 19 mm Length 455 mm |
85
|
10.8906.107AXLE ROD (TRACK CONTROL ARM) |
L=610 d=Ø21/21 Ax=152/152
|
86
|
10.9006.462AXLE ROD (TRACK CONTROL ARM) |
L=594 d=Ø/19/19 Ax=130/130
|
87
|
10.9181.145AXLE ROD (TRACK CONTROL ARM) |
hole pitch 130 mm
Length 622 mm tube diameter 60 mm |
88
|
13.10344.194AXLE ROD (TRACK CONTROL ARM) |
Length 275 mm
cone size 22 mm Outside Thread M18 x 1,5 |
89
|
13.10480.088AXLE ROD (TRACK CONTROL ARM) |
Cone Size [mm]: 28.6
Fitting Position: Rear Axle Length [mm]: 380 |
90
|
13.13080.251AXLE ROD (TRACK CONTROL ARM) |
Length: 350.00
Pipe Dia: 36mm Cone Size: 32mm |
91
|
13.8580.063AXLE ROD (TRACK CONTROL ARM) |
cone size 28,9 mm
cone size 32,0 mm Height or Thickness 184 mm |
92
|
13.8980.062AXLE ROD (TRACK CONTROL ARM) |
Length 380 mm
Cone size 32 mm Tube diameter 36 mm |
